550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

High Temperature Fiberglass Cloth - Fireproof, Flame Retardant & Insulation. Our factory produces high-quality, heat-resistant glass fiber cloth for various industrial applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Features
  • Application
  • Related Products
Overview

Basic Info.

Model NO.
HTDFC
Fiberglass Type
E-Glass
Alkali Content
Alkali Free
Color
White, Black, Grey, Red, etc
Roll Width
10cm-300cm
Roll Length
50meters -1000 Meters
Customize
Accept Customize Specification
Transport Package
Carton Pallet
Specification
100-1755 gsm
Trademark
HONTED
Origin
China
HS Code
7019693090
Production Capacity
1000000 Square Meters

Product Description

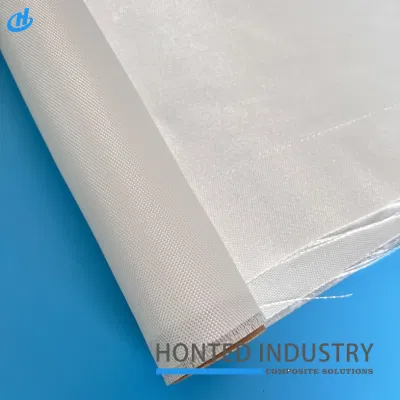

High Temperature Proof Fiberglass Cloth:

Product Description

Fiberglass Cloth which is an engineering material, which has the excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, boat building, FRP products, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc.

Thicker, heavier and stronger. Provides better durability light and far more resistance to heat impact from welding sparks as compared to other thinner and textured clothes. Non hairy texture preventing irritation to be exposed skin common in other fabric and asbestos clothes. Reduce the overall impact temperature and prevent burn through.
.

Temperature resistance capability of up to 550°C -1500°C and can sustain even higher temperature sparks intermittently. Provides better durability, when subjected to heat shock treatments, Soft and flexible, making it ideal for wrapping around uneven surfaces and equipments.550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

Texturized Fiberglass Cloth is made of fiberglass bulk yarn which is texturized or volumized from fiberglass roving yarn by high pressure air, it has good properties such as high temperature resistance(up to 550°C), low thermal conductivity coefficient (<0.035keal>Moreover, it has no harm to human body and is a good replacement for asbestos products

Product Parameters


550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

Product Features

Texturized fabric is of low density, high temperature resistance,high strength,
non-deformation, low shrinking,high coverage rate,
heat preservation. More excellent property will be obtained if its being braided
with fine copper wire,nickel wire or stainless steel wire.

Application

It is widely used in the fields of interior decoration, filtration, dust elimination,air
purification,industrial insulation,sound insulation,fire protection, pipeline
wrapping,composite coating,etc.

Related Products

3732 Fiberglass Cloth for Fireproof has advantages of a high temperature, corrosion resistance, dimensional stability, minimal shrinkage, elongation, high strength, filtering speed, sound absorption, shock absorption, insulation, flame resistance, folding resistance and so on.

Weight: 430gsm Satin weave
We can also add Silicon coating 40, 70, 80gsm for one side or two sides.
The color can be customized.
Different width available: 1000mm/1250mm/1550mm/2200mm, roll length is 805m

It is widely used in iron and steel industry.
This cloth is for t
hermal insulation, insulation and the coating.

550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber
550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

Specifications

Item Weave Weight (g/m2) Thickness Width Roll Length Color
E/C 01 Plain 105 ± 5 0.1mm 0.9-2.2m 300m white
E/C 012 Plain 120 ± 5 0.12mm 0.9-2.2m 300m white
E/C 014 Plain 140 ± 5 0.14mm 0.9-2.2m 300m white
E/C 016 Plain 160 ± 5 0.16mm 0.9-2.2m 300m white
E/C 018 Plain 180 ± 5 0.18mm 0.9-2.2m 300m white
E/C 260 Plain 260 ± 5 0.25mm 0.9-2.2m 200m white
E/C 320 Plain 340 ± 5 0.30mm 0.9-2.2m 100m white
E/C 7628 Plain 200 ± 5 0.18mm 0.9-2.2m 100m white
E/C 3732 Twill 430 ± 5 0.43mm 0.9-2.2m 100m white/yellow
E/C 600 Plain Pane 600 ± 5 0.55mm 0.9-2.2m 50m white/yellow
E/C 3784 Satin 840 ± 5 0.80mm 0.9-2.2m 50m white/yellow
E/C 3788 Satin 1750 ± 5 1.65mm 0.9-2.2m 50m white/yellow




High Silica Fiberglass Cloth:

High silica fiberglass is inorganic fiber which contents more than 96% of SiO2. It is materials of high temperature resistance for fireproof protective cloth, fireproof curtain, fire blanket, protective materials for welding, filter for molten metal, dust collecting in media of high temperature gas and filtration in media of high temperature liquid,etc.

High temperature properties:
550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber
Soft point nearly 1700 deg, It can work 10 minutes at 1450 deg

Keep good state at 1600 deg for 15 seconds.


Long period service at 1000 deg for working temperature.


Excellent ability: low thermal conductivity, good chemical stability,

Good electric insulation, low thermal shrinkage.

Product Code Weaving Style Weight(gsm) Thicness(mm) Silica Content(%) Working Temperature
HS400 4HS 400±30 0.38±0.05 ≥96 1000ºC
HS600 8HS 600±30 0.7±0.05 ≥96 1000ºC
HS1100 12HS 1100±30 1.3±0.05 ≥96 1000ºC

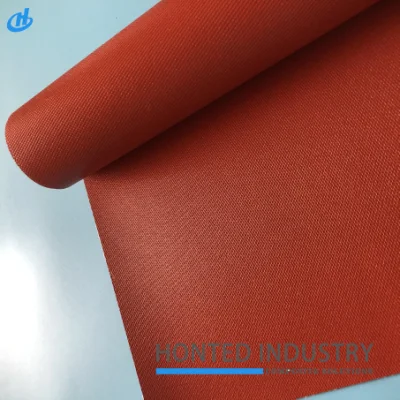

Silicone Rubber Coated Fiberglass Cloth:


550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber
Silicone Coated Fiberglass Cloth is constructed from a fiberglass base cloth and impregnated or coated one side or both sides with a specially compounded silicone rubber. Due to silicone rubber physiological inert, not only increase the strength, thermal insulation, fireproof , insulating properties, but also has the ozone resistance, oxygen aging, light aging, climate aging , oil resistance and other properties.

SIlicone Rubber coated fiberglass cloth is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and made by rolling or impregnation with organic rubber. It is a newly made product with properties and many uses.



ITEM
Thickness

(mm)
Woven
Fabric weight

(g/m²)
Coating weight

(g/m²)
HTD-200 C 80
0.23
Plain
200
80
HTD-430 C 80
0.43
Twill
430
80
HTD-430 C 140
0.45
Twill
430
140
HTD-430 C 160
0.46
Twill
430
160
HTD-566 C 200
0.6
Twill
560
200
HTD-566 C 240
0.62
Twill
560
240
HTD-566 C 300
0.65
Twill
560
300
HTD-840 C 200
0.85
Stain
840
200
HTD-840 C 280
1.0
Stain
840
280
HTD-1050 C 750
1.1
Stain
1050
750
HTD-1650 C 850
1.5
Stain
1650
850
HTD-1800 C 2000
2.5
Stain
2000
2000


Polyurethane (PU) coated Fiberglass Cloth is made of fiberglass which is woven by high quality E-glass filament yarns, and then coated with Polyurethane (PU) on single side or both sides, finally colored with aluminum pigments.
550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

It features good rebound resilience, toughness, softness,good abrasion & allergen resistance, oils resistance, cold,aging and weather resistance,and anti-solvents, and water proof.it can withstand temperature up to 180ºC for short bursts,this kind of cloth has lots of positive properties,bright in color, It also has the function of an anti bacterium,and can also be used for mould proofing, heat-insulation and anti-ultraviolet.

Polyurethane 1 side Coating style Glass Fiber Fabric
Inspection item
Technical index
Weight
460g/m2
620g/m2
690g/m2
690g/m2
1070g/m2
Thickness
0.4mm
0.77mm
0.63mm
0.7mm
1.2mm
Temperature resistance
-50ºC~180ºC
Color
Green,Silver
Fabric style
Fiberglass with steel reinforced,Fiberglass
Fire resistance
Non-flammable(NF92507,M0)
Applications
Insulation jackets,mattress and Pad,fabric expansion joints,fabric ductwork connector,fire doors&fire curtains,welding/fire blankets.
Polyurethane both side Coating style Glass Fiber Fabric
Inspection item
Technical index
Weight
220g/m2
460g/m2
640g/m2
720g/m2
720g/m2
880g/m2
Thickness
0.21mm
0.4mm
0.86mm
0.7mm
0.72mm
0.9mm
Temperature resistance
-50ºC~180ºC
Color
Red/white color,yellow/green color,grey/white color,blue/black color,silver grey color,white,red,black,yellow,blue,green,silver grey
Fabric style
Fiberglass with steel reinforced,fiberglass
Fire resistance
Non-flammable(NF92507,M0)
Applications
Insulation jackets,mattress and Pad,fabric expansion joints,fabric ductwork connector,fire doors&fire curtains,welding/fire blankets


Fiberglass Cloth has: plain weave, twill weave, satin weave, gauze weave.
A).Plain weave: it can be used in electricity insulation materials and reinforced materials in industry, because of inseparable structure, plain and clear lines. 100gsm-800gsm
B).Twill weave: compared with plain weave, it is of high density, high intensity, with a soft and loose structural weave. It can be used in ordinary reinforced materials, filter materials, and painting cloth.
C) Satin weave: compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced material in machinery.
D).Gauze weave: said lattice twist weave. It can be used in spread model curtain,resin reinforced emery wheel gray cloth and lattice embed belt.

Knitted Fiberglass Cloth:

Knitted Cloth reinforcements provide customized fiber placement and design flexibility to increase part strength and durability.

Knitted Fabric reinforcements are produced on large looms where fibers are directionally oriented (X and Y axis, or sometimes referred to as the 0°, 90° and 45° orientation) in multiple layers and then stitched together to keep the fibers in place. The resulting fabric is trimmed and rolled. This production process allows for a multitude of fiber orientation patterns, thickness, weight distribution and the incorporation of different types of reinforcements like carbon fiber or aramid fiber. Fabrics can be balanced, with the same amount of fiber used in both the X and Y axis or unbalanced with added fiber in one axis to provide more reinforcement strength in that direction. Using knitted fabrics allows for significant part or laminate design flexibility and is widely used in boat building, transportation, wind blades and recreational products where specific strength orientation in the laminate is optimal.

550-1500c High Temperature Fiberglass Cloth Heat Insulation Fireproof Flame Retardant Glass Fiber Cloth High Silica / Coated Silicone / PU Rubber

Product No. Overall Density(g/m2) +45°Roving Density(g/m2) -45°Roving Density(g/m2) Chop Density(g/m2) Polyester Yarn Density(g/m2)
HTDX160 172 80 80 / 6
HTDX240 233 106 106 / 6
HTDX300 306.7 150.33 150.33 / 6
HTDX400 407 200.5 200.5 / 6
HTDX450 457 225.5 225.5 / 6
HTDX600 607.2 300.6 300.6 / 6
HTDX800 807.6 400.8 400.8 / 6
HTDX1200 1208.6 601.3 601.3 / 6
HTDXM400/225 632 200.5 200.5 225 6
HTDXM600/225 832.2 300.6 300.6 225 6
HTDXM800/450 1257.6 400.8 400.8 450 6
HTDXM1208 682 200.5 200.5 275 6
HTDXM1308 732 225.5 225.5 275 6
HTDXM1708 882.2 300.6 300.6 275 6
HTDXM2408 1082.6 400.8 400.8 275 6



Storage

Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the product is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.
