Chemical Fiber Industry Anti-Static Wire Mesh

Looking for high-quality anti-static wire mesh for chemical fiber industry? Look no further! We are a factory specializing in manufacturing top-notch products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SUN HONG
Gram Weight
Customized
Structure
Fabric Form
Function
Radiation-Resistant Fiber
Density
200
Air Permeability
500+/- 6800
Name
Anti-Static Belt
Transport Package
Export Stand Packing
Specification
As to order
Trademark
sunhong
Origin
China
HS Code
8439990000
Production Capacity
5000

Product Description

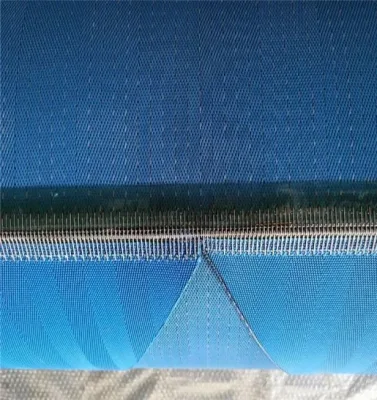

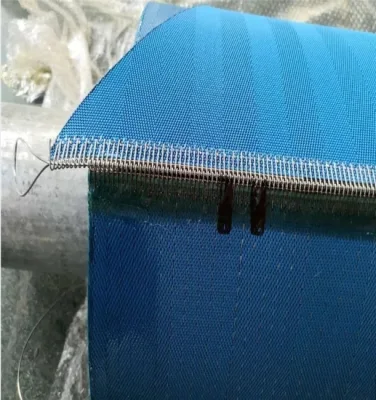

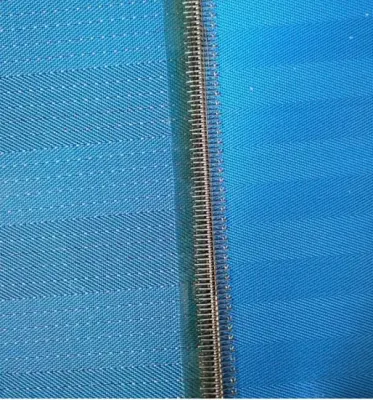

Anti-static conveyor belt

Antistatic belt are made by polyester and conductive yarns(carbon wire/ bronze wire ),The function of the conductive yarn is to release the friction electrostatic which generated from high speed machine running.
Antistatic polyester mesh is mainly used in environmental protection, high-density board production, rubber, chemical and other industries.

Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh


Anti static principle: the equipment using polyester mesh will generate static electricity when running at high speed. Through the conductive fiber in the polyester mesh, the static electricity can be released, so as to play an anti-static role.

Material

1.Monofilament is the raw material for the production of net curtains, which is very important. Only high-quality monofilament can be made into high-quality good net.
2.We use the anti-hydrolysis monofilament of Zhejiang Quzhou Baste Mesh Co., Ltd., which has a good reputation in China.
3.The conductive wire of the radial wire is selected from the British Shakespeare monofilament, and the conductive wire of the weft wire is selected from the Korean Sakeland conductive wire.

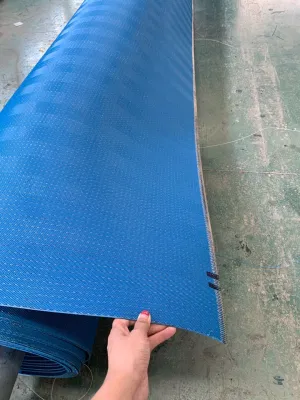

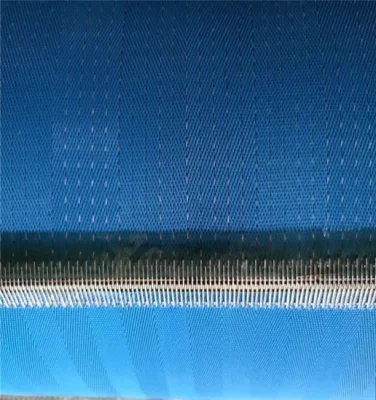

Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh


Parameter
Type
Filament Diameter mm Density
Root /cm
Tensile Strength N/cm Weight kg/m² Thickness mm Air permeability m³/m²h CFM 127Pa Conductive filam
(material)
Electric conductivity
Ω·cm
warp weft warp weft surface Joint
S31505 0.4 0.5 33 9 1600 900 0.8 1.3 2976 186 Copper wire 5*10³
S14804 0.65 0.8 14.8 7.2 2000 900 1.6 1.95 6800 430 Copper wire 5*10³
S14804-1 0.65 0.8 14.8 7.2 2000 900 1.5 1.95 6800 430 Carbon wire 5*10³
S4106-3 0.5 0.3 22.8 12.6 2200 900 1.5 1.8 8000 500 Copper wire 5*10³
0.7
S14708 0.64 0.7 15 8 2000 900 1.03 1.78 11200 700 Carbon wire 6*10³
S12708 0.46*0.68
(Flat)
0.7 14.1 7.3 2000 900 0.9 1.76 8000 500 Carbon wire 6*10³

Packing and delivery

1. Bubble Film and waste thick fabric wrapping while protecting inside fabric.
2. Wrapped special fabric package outside. (Air shipping )
3. Composite wooden box(seashipping )

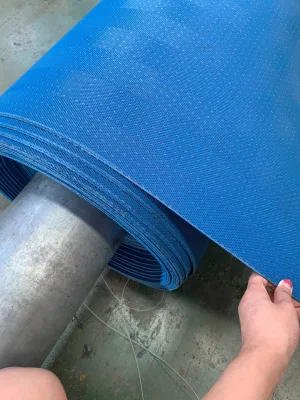

Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh
Chemical Fiber Industry Anti-Static Wire Mesh
Sun Hong Group

Established in 2010, Sun Hong Group is a comprehensive company integrating planning, design, technical support, production, testing and training. We have a professional technical team to provide you with professional design and technical support as well as the best source of goods. After more than ten years of efforts, our products have been exported to 96 countries, and have more than 300 paper plants customers.

Sun Hong Group have a wide range of business, we can design and produce various customized products according to the different requirements of different customers. Mainly involving Paper Machine Clothing, Industrial Fabric, Paper and pulp machine spare parts, test equipment, etc. In addition, we also provide customers with update and transformation services to enhance customer output.

Chemical Fiber Industry Anti-Static Wire Mesh
