E-Glass Fiberglass Stitched Combo Mat

Shop our high-quality E-Glass Fiberglass Stitched Combo Mat. As a factory direct supplier, we offer competitive prices and reliable products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Type 1
  • Type 2
  • Product Feature
  • Application
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
BH-SCM13
Fiberglass Type
E-Glass
Application
Wall/Roof Covering Cloth, Filter Cloth
Surface Treatment
Silicon Coated
Weave Type
Twill Woven
Alkali Content
Alkali Free
Shape
Fiberglass Cloth
Fiber Characteristics
E-Glass
Diameter of Filaments
Intermediate Fibers
Fiber Appearance
Staple-Fibers
Glass Composition
E-Glass
Color
White
Weave Stype
0/90, +-45...
Transport Package
Each Roll in One Polybag Then to an Export Carton.
Specification
BX series, TTX series, QX series, QXM series, BXC
Trademark
China Beihai Fiberglass Co., Ltd.
Origin
China
HS Code
7019110000
Production Capacity
500 Ton/Tons Per Month

Packaging & Delivery

Package Size
20.00cm * 30.00cm * 12.00cm
Package Gross Weight
1.000kg

Product Description

Product Description

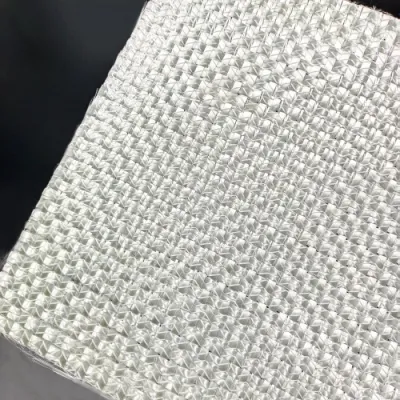

E-Glass Fiberglass Stitched Combo Mat

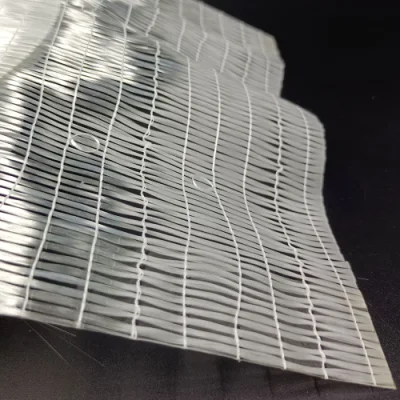

E-Glass Stitch Combo Fabric consists of two or more layers of fiberglass rovings which are stitch-bonded. One layer of rovings consists of parallel aligned roving and different layers of rovings can be oriented differently and have different linear density. The rovings specification, rovings orientation, number of rovings layers, mat width and roll diameter can be tailor-made according to customers' requirements.

BX-glass stitched combo mat consists of two or more layers of fiberglass roving which are stitch-bonded. One layer of rovings and different layers of roving can be oriented differently and have different liner density. The roving specification, number of roving layers, mat width and roll diameter can be customized as per requirement.
E-Glass Fiberglass Stitched Combo Mat
Type 1

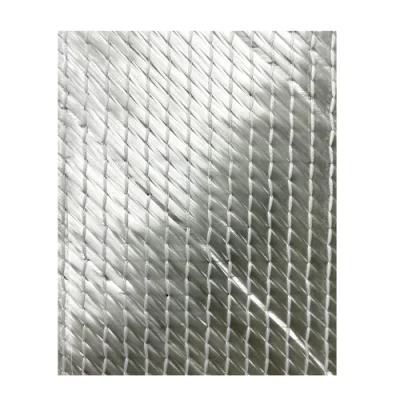

Longitudinal Triaxial (0°/ +45°/ -45°)

At most  three layers of roving can be stitched, however a layer of chopped strands(0g/m2-500g/m2) or composite materials can be added. The maximal width can be 100 inches. This product is used in blades of wind power turbines, boat manufacturing and sports advices.

E-Glass Fiberglass Stitched Combo Mat

Product  No

Overall density

0°Roving density

+45°Roving density

-45°roving density

Chop density

Polyester yarn density



(g/m2)

(g/m2)

(g/m2)

(g/m2)

(g/m2)

(g/m2)

BH-TLX600

614.9

3.6

300.65

300.65

-

10

BH-TLX750

742.67

236.22

250.55

250.55

-

5.35

BH-TLX1180

1172.42

661.42

250.5

250.5

-

10

BH-TLX1850

1856.86

944.88

450.99

450.99

-

10

BH-TLX1260/100

1367.03

59.06

601.31

601.31

100

5.35

BH-TLX1800/225

2039.04

574.8

614.12

614.12

225

11

Type 2

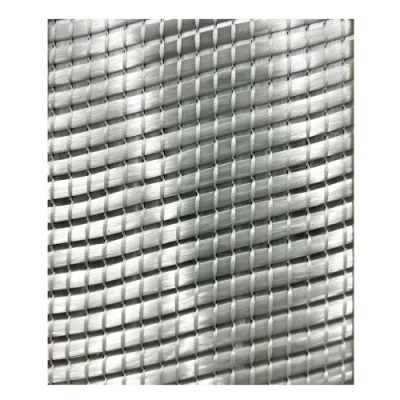

Transverse Triaxial (+45°/ 90°/ -45°)

At most  three layers of roving can be stitched, however a layer of chopped strands(0g/m2-500g/m2) or composite materials can be added. The maximal width can be 100 inches. This product is used in blades of wind power turbines, boat manufacturing and sports advices.

E-Glass Fiberglass Stitched Combo Mat

Product  No

Overall density

+45°Roving density

90°roving density

-45°roving density

Chop density

Polyester yarn density



(g/m2)

(g/m2)

(g/m2)

(g/m2)

(g/m2)

(g/m2)

BH-TTX700

707.23 250.55 200.78 250.55 - 5.35

BH-TTX800

813.01 400.88 5.9 400.88 - 5.35

BH-TTX1200

1212.23 400.88 405.12 400.88 - 5.35

BH-TTXM1460/101

1566.38 424.26 607.95 424.26 101.56 8.35

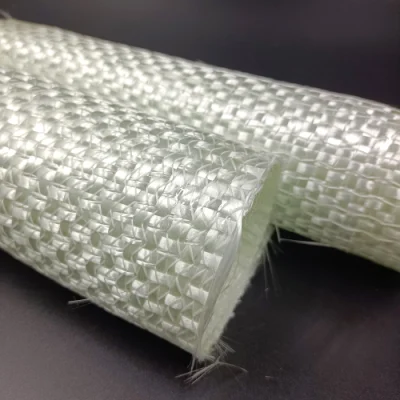

Product Feature

  • Multi-directionality: The glass fiber multiaxial fabrics are woven in different directions, providing superior mechanical properties in multiple directions. This results in enhanced bending strength, tensile strength, and shear strength, making it ideal for withstanding forces from different directions.

  • Uniformity: The fibers in multiple directions are woven together, ensuring better fiber distribution and uniformity. This significantly improves the strength, stiffness, and stability of the material, ensuring reliable performance.

  • Adaptability: Our multiaxial fabrics can be customized to meet specific application requirements. You can choose different fiber directions and weaving patterns to achieve the desired properties. This adaptability makes it perfect for fabricating complex shapes and curved structures.

  • Processability: Our glass fiber multiaxial fabric is highly processable and can be easily compounded and processed with resin and adhesive to form glass fiber composite materials. It can be molded using various processes such as pressing, injection molding, and molding, making it suitable for a wide range of manufacturing needs.
E-Glass Fiberglass Stitched Combo Mat
Application

Fiberglass multiaxial fabrics are widely used in aerospace, automotive, marine, construction and other fields. It is often used as a reinforcing material for the manufacture of composite structural parts, thin-walled structures, complex shaped parts and so on. In the aerospace field, glass fiber multiaxial fabrics can be used in the manufacture of aircraft wings, spacecraft shells, etc.; in the automotive field, it can be used for the reinforcement and lightweighting of automobile bodies, chassis, etc.; in the field of construction, it can be used for the reinforcement of walls and roofs, and for earthquake resistance.

E-Glass Fiberglass Stitched Combo Mat
Packaging & Shipping

The product is wound on a paper tube of 76 mm  inner diameter,  diameter is  275 mm , wrapped in plastic film and placed in a cardboard or Kraft paper wrapper. Can be loaded in bulk containers, but also tray packaging.

E-Glass Fiberglass Stitched Combo Mat
Company Profile
E-Glass Fiberglass Stitched Combo Mat E-Glass Fiberglass Stitched Combo Mat

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
