ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair

Shop our ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair. High-quality and durable products directly from our factory. Order now!"
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Woven Roving Combo mat
Standard Size
1m,1.25m,1.27m
Max,Width
3200mm
Min,Width
100mm
Carton Size
22*22cm
Transport Package
Carton/Pallet
Specification
55KG/ROLL
Trademark
TIANMA
Origin
China
HS Code
70193100
Production Capacity
30000 Tons/Year

Product Description

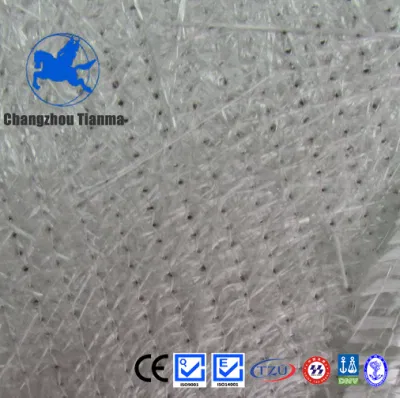

  ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair Woven roving combo mat is made of woven roving and chopped fiberglass strand complex of, then stitched together with polyester yarn. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, Auto parts, refrigerated tools and structural sections industry etc, suitable for hand lay up, RTM, pultrusion, vacuum processes.

General Data

Code

Weight  (g/m2)

Woven roving
(g/m2)

Chopped strand
(g/m2)
%
Moisture  Content

Wet speed
(≤S)

Layer
EMK200/200 400 200 200 ≤0.2 60 2
EMK300/300 600 300 300 ≤0.2 60 2
EMK400/300 700 400 300 ≤0.2 60 2
EMK500/300 800 500 300 ≤0.2 60 2
EMK500/450 950 500 450 ≤0.2 60 2
EMK600/300 900 600 300 ≤0.2 60 2
EMK600/450 1050 600 450 ≤0.2 60 2
EMK800/300 1100 800 300 ≤0.2 60 2
EMK800/450 1250 800 450 ≤0.2 60 2

ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair
ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair
ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair
ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair

ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair
ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair



Remarks:
1) Roll width: Standard width in 1250mm, 1270mm, and other sizes depends on customer's real needs, available in 200mm to 2600mm.

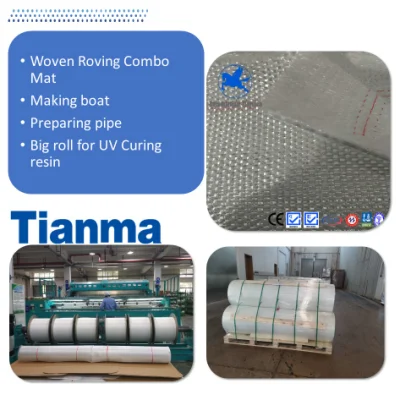

2) Packing: Fiberglass woven roving combo mat is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container.
3) Storage: The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15ºC to 35ºC and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.


Fiberglass Chopped Strand Mat  is made of randomly oriented chopped glass strands around 50mm in length and bonded together with polyester binder in powder form or emulsion form. It is compatible with Polyester, Vinyl ester and Epoxy resin and widely used in boat building, automotive, cooling towers, bathroom accessories, anti-corrosion pipes etc, suitable for hand lay up, filament winding, press molding forming processes.

Features:
1. Randomly dispersed and excellent mechanical properties.
2. Excellent compatibility with resin, cleaning surface, well tightness.
3. Excellent heating resistance.
4. Faster and well resin wet-out rate.
5. Easily fills mold and confirms to complex shapes.

ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair

ECR Glass, Ewr600/Mat 500 Fiberglass Woven Roving Combo Mat for Pipe Repair
