Feeding Device for Betel Palm Packing Scale Machine

Find reliable Feeding Device for Betel Palm Packing Scale Machine at our factory. We offer quality products to meet your packaging needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
LCS-50
Application
Betel Palm
Type
Filling and Sealing Machine
Forming Species
Melt Molding
Forming Function
Seal
Driven Type
Mechanical
Material Type
Paste
Packaging
Pallete
Packaging Material
Aluminum Foil
Model
Lcs-50
Voltage
380V 50Hz
Package Specification
10-50kg Per Bag
Output
120-180 Bag Per Hour
Power
3.75kw(Chain Plate Conveyor 3kw Feed Belt 0.75kw
Material
Stainless and Carbon Steel
Usage
Betel Palm or Particle
Weight
Less Than or Equal to 1000kg
Supporting Gas Source
0.4-0.6 MPa/0.2-0.6 M3/Min
Relative Humidity
Less Than or Equal to 85%
Temperature Range
-10ºC-+40ºC
Structure
Mechanical Device and Microcomputer Control System
Special
Suits Adhesive Material
Packing
Wrap
Transport Package
as Per Product
Specification
6350*2100*4050mm
Trademark
LEADING
Origin
Yangzhou
HS Code
8423309090
Production Capacity
500/Sets

Packaging & Delivery

Package Size
640.00cm * 210.00cm * 405.00cm
Package Gross Weight
1000.000kg

Product Description


Product Description

  The LCS-50 microcomputer control quantitative packaging scale is suitable for the quantitative packaging of betel palm or similar particle or Adhesive materials. It is widely used in grain, feed, food, light industry, chemical industry and other industries. It consists of a mechanical device and a microcomputer control system. Mechanical device includes feeding, bag weighing, sewing, packing, conveying and pneumatic system; control system includes weighing sensor, weighing instrument and switching power supply. In addition to manual bagging, the speed of feeding, quantitative, bag, unloading bag all use automatic control. Set the control parameters such as fast and slow charging quantity and realize the overload alarm display. The equipment has the characteristics of fast weighing speed, high accuracy, good stability and simple operation.

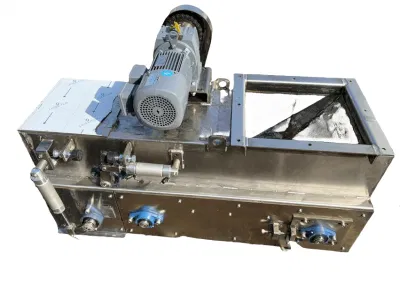

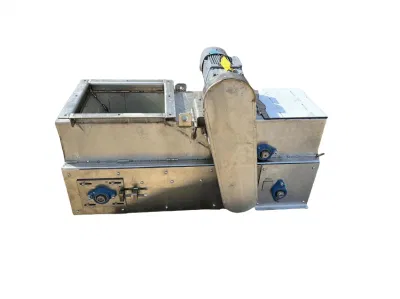

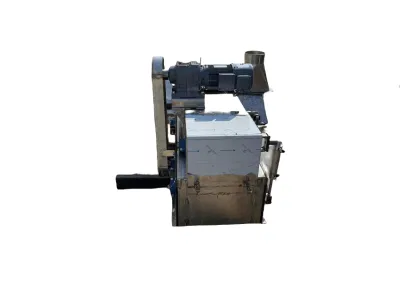

Detailed Photos

Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine

Product Parameters



Class of accuracy X(0.5)
Accuracy level reference value Ref(0.5)
Division value d=10g
Maximum scale Max=50kg
Minimum scale Min=10kg
Meaning speed 120~180 bag/hour
Temperature range -10ºC~+40ºC
Relative humidity ≤85%
Supporting power supply 380V 50Hz
Supporting gas source (0.4~0.6)MPa/(0.2~0.6)m3/min
Gross power ≤1.5kW
Scale weight ≤1000kg
External dimensions 6350×2100×4050mm



Certifications

Feeding Device for Betel Palm Packing Scale Machine

Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine


Packaging & Shipping
Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine

Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine



Company Profile

  Leading is a high-tech enterprise in Jiangsu Province, the two factories cover a total area of 25 mu, the registered capital of 20 million, with more than 30 doctor, master, bachelor, college and other high and intermediate professional and technical talents.
  Mr.Wu Bing, the founder of the company, and his core team have started businesses in the feed industry for more than 30 years. The main computer factory automation control and management system, batching system, microscale, measuring equipment, robot palletizing packaging line.
  The earliest batching system and full-screen computer control system in China were developed by the core team of the company, among which the batching system won the third prize of scientific and technological progress of the Commerce Department; the electrical control system project of the delivery feed plant.
  In 2014, the company focused on the layout of China's biological fermentation industry, dedicated on the research of equipment and production process, and provided customers with the design, development, manufacturing, installation of a complete set of fermentation production line project.
  The company has 2 software product certificates, 6 software copyright certificates, 12 utility model patent certificates, 1 appearance design patent, 1 manufacturing measuring instrument license certificate.
  The company cooperates with domestic well-known biotechnology companies to provide customers with a full set of solutions from biotechnology, process to equipment manufacturing, complete production line "handover key" project.
  The company has provided different customers with fermentation equipment, production line process and solutions for special materials for many times.



Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine



Feeding Device for Betel Palm Packing Scale Machine
Feeding Device for Betel Palm Packing Scale Machine




Feeding Device for Betel Palm Packing Scale Machine

FAQ

1. Can you supply OEM or ODM?
Answer: Yes, we do. We can manufacture the machines according to your exact requirements.

2. What is your delivery time?
Answer: Generally the delivery time is 7 - 15 days after down payment receiving. But the exact delivery time will depend on your quantity and your ordering time.

3. Will you dispatch engineers to our factory for installation or training?
Answer: Yes, we can arrange our engineers to customers' factories for installation and training, and we will calculate all the cost to customers. If you have your own engineers team, we can supply you manual book and guide video, keep 24 hours online to cooperate your engineers to finish the installation and operation.

4. Can you also supply me related machines together?
Answer: Yes, we can. We can supply not only a complete production line, but also the upstream and downstream machines, such as grinding machines, packing machines etc. If you purchase other goods, you can also send your other goods to our factory for loading together.

5. What is the payment terms?
Answer: We accept 30% T/T as deposit and the balance by T/T before shipping. We can also accept L/C, D/A, D/P, T/T, Western Union, MoneyGram etc. based on different orders.

6. Can you guarantee your quality?
We purchase quality spare parts and raw materials which are produced by famous brand manufacturers, so that we can assure the quality of machines we supply to customers are high and reliable.
