Basic Info.
Model NO.
300/180/300
The Second Layer
180GSM PP
Suitable Process
Rtm or Infusion
The Third Layer
300GSM
Process
Lrtm
Transport Package
Carton and Pallet
Specification
MNM300/180/300
Trademark
utek
Origin
China
HS Code
7019
Production Capacity
400ton/Month
Product Description

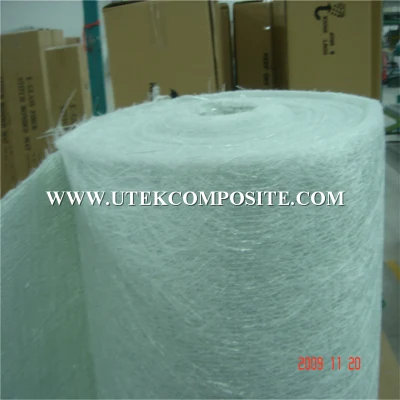

We supply RTM sandwich mat to India for metro parts.For example seats,FRP / GRP components,windows & doors and so on.It is a stitch bonded composite reinforcement fabric containing a PP layer inside the fabric.Their unique structure enables high wetting capacity, which can increase the productivity and lower the costs of production.
Properties:
Improved mechanical properties and reduction of weight through an optimal positioning of the glass mat on the outside surfaces of the composite part.
Improved resin flow around PP core, which is not slowed by the glass fiber.
Product Code | CS (g/m 2 ) | Core (g/m 2 ) | CS (g/m 2 ) | Total Weight (g/m 2 ) |
| M300/P180/M300 | 300 | 180 | 300 | 780 |
| M450/P180/M450 | 450 | 180 | 450 | 1080 |
| M600/P180/M600 | 600 | 180 | 600 | 1380 |
| M300/P180 | 300 | 180 | -- | 480 |
| M450/P250 | 450 | 180 | -- | 630 |
| M600-/P250 | 600 | 180 | -- | 780 |
PP core used:
Each roll covering by polyethylene plastic bag,then placed into carton and set on pallet,or set on pallet directly.
The pallet shall no be higher than 2 layers.Product shall be placed under dryness condition and shall no be open the covering membrane until applying.
Welcome to inquiry!
