Basic Info.
Model NO.
600/250/600
Features
Faster Resin Flow
Roll Width
1270mm
Transport Package
in Carton
Specification
3 layers
Trademark
JLON
Origin
China
HS Code
70193900
Production Capacity
400ton/Month
Product Description
Introduction:

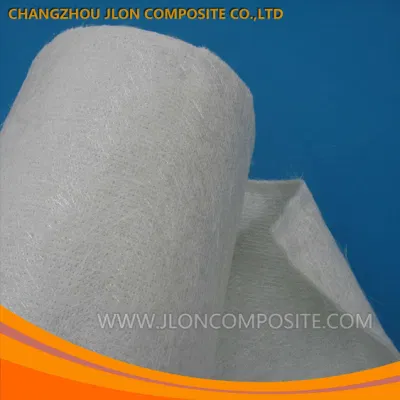

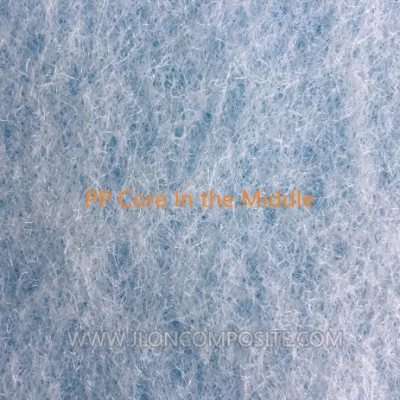

Infusion mat is a sandwich complex which consists of one or two layers of chopped strand mat outside and a core of PP (resin flow zone) in the middle. It is designed for closed injection processes such as RTM (Resin Transfer Moulding) and RTM light. Resin flows much faster, which is time saving.
Features:
Very good drapability
Faster flow rate
Suitable for use in complicated mould shapes
Increased control over laminate thickness
Specifications:
A layer of chopped strand mat can be replaced by biaxial fabric in 0/90 degree to give higher strength.
Specifications:
A layer of Polyester nonwoven also can be added.
Infusion mat is a sandwich complex which consists of one or two layers of chopped strand mat outside and a core of PP (resin flow zone) in the middle. It is designed for closed injection processes such as RTM (Resin Transfer Moulding) and RTM light. Resin flows much faster, which is time saving.
Features:
Very good drapability
Faster flow rate
Suitable for use in complicated mould shapes
Increased control over laminate thickness
Specifications:
| Product No. | Overall Density (g/m²) | Chop Density (g/m²) | Core Density (g/m²) | Chop Density (g/m²) |
| M300P180M300 | 780 | 300 | 180 | 300 |
| M300P250M300 | 850 | 300 | 250 | 300 |
| M450P180M450 | 1080 | 450 | 180 | 450 |
| M450P250M450 | 1150 | 450 | 250 | 450 |
| M600P180M600 | 1380 | 600 | 180 | 600 |
| M600P250M600 | 1450 | 600 | 250 | 600 |
A layer of chopped strand mat can be replaced by biaxial fabric in 0/90 degree to give higher strength.
Specifications:
| Product No. | Overall Density (g/m²) | 0º Roving Density (g/m²) | 90º Roving Density (g/m²) | Core Density (g/m²) | Chop Density (g/m²) |
| LT600P180M300 | 1080 | 330 | 270 | 180 | 300 |
| LT600P180M600 | 1380 | 330 | 270 | 180 | 600 |
| LT800P180M450 | 1430 | 413 | 387 | 180 | 450 |
A layer of Polyester nonwoven also can be added.
