Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion

Get top-quality Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion at our factory. We offer durable, reliable products for your needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ETMN450/45
Product Code
Etmn450/45
Unit Density
500G/M2 (+/-5%)
Product Structure
Polyester Tissue + Ud Fabric + Csm
Product Design
Three Layers, Stitched Together
MOQ
960kgs Which in Normal One Pallet
Suitable Process
Pultrusion, Filamend Winding, Hand Lay up etc;
Applications
Pultrusion Profiles, Auto Parts, Radomes, Cables E
Transport Package
Roll Carton Packing, Per Into Pallets
Specification
60kgs/roll, 16 rolls in one pallet
Trademark
ZHONGJIE
Origin
Changzhou City, Jiangsu Provice, China
HS Code
7019310000
Production Capacity
1000tons Per Month

Product Description

  • No powder or emulsion, quickly wet through and wet-out in resins

  • High tensile strength in weft directions of product

  • Good physical and chemical properties, and easy design to solution

  • Polyester tissue has superior acid and water corrosion resistance

  • Easy for cutting in any sizes suitable for the mold

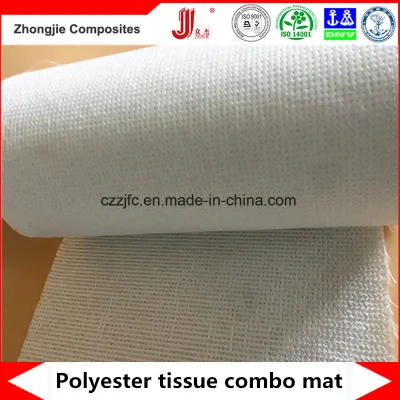

    Product Type:  Fiberglass UD combination mat backed polyester tissue
    ZHONGJIE Code:  ETMN450/45
    Unit weight: 500g/m2 (+/-5%)
    Raw material:  Fiberglass direct roving,  assembled roving, Polyester tissue, Polyester yarn
    Technics: Fiberglass UD mat backed polyester tissue is made of polyester tissue laid on fiberglass UD weft combo mat, stitched together by polyester yarn
    UD weft fabric density: 225g/m(+/-5%)
    Chopped density: 220g/m(+/-5%)
    Polyester tissue: 45g/m(+/-5%)
    Polyetser yarn:  10g/m(+/-5%)
    Roll packing width: Normal size is 1270mm, tape size available from 200mm to 2600mm, depends on customer's real needs
    Mositure content:  ≤0.15%
    Wet speed  ≤30/S
    Sizing/Coupling agent:  Silane
    Combustible Content:  0.4 - 0.8%
    Usage process:  Pultrusion, Filament winding, Hand lay up, Compression molding etc;
    Compatible resins:  Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc;
    Application: Pultrusion profiles, Radomes, Train parts, Solar brackets, Electrical cables  etc;

Catalog refer:
Product code Specification (Layer weight (g/m²) Moisture content (%) Wet speed (S) Standard roll width (mm)
90° Chopped strands Polyester tissue Stitch yarn Unit weight
ETM450   225 220   10 455 0.15 30 1270
ETMN450/45   225 220 45 10 500 0.15 30 1270
EL500 336 168     10 514 0.15 30 1270
ELM650 420   220   11 653 0.15 30 1270
ETM650   420 250   11 681 0.15 30 1270
ETMN650/45   420 250 45 11 726 0.15 30 1270
ETM900   672 250   12 934 0.15 45 1270
ETMN900/45   672 250 45 12 979 0.15 45 1270
EL900 672 168     12 852 0.15 45 1270
ELM900 672   250   12 934 0.15 45 1270

Factory description:

* Best fiberglass roving and chopped strand supply in China like JUSHI, CTG, CPIC, Shandong fiberglass keeps our products excellent performance and steady in quality

* Well-known in FRP forming process and application keeps our products more outstanding and humanized

* Professional and experienced staff makes our production line more efficient and contineous improvement

* Good management makes our product more competitive in trunout and prices

* More than 45 sets production lines with kinds of machines makes us great production capacity

Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion

Applications refer:
Fiberglass UD mat backed polyester tissue widely used in Pultrusion process and applicated to pultrusion profiles, Auto parts, Railways, Radomes, Solar brackets, Seafoods cultures, Constructions, Electrical powers, Anti-corrosion fences etc;
Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion

Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion

Exhibition notice (We will be there waiting for you):
* JEC Shanghai expo -- Sep., 2018
* ICERP  Mumbai expo-- Jan., 2019

* JEC Paris expo -- March., 2019
Fiberglass Ud Combination Mat Backed Polyester Tissue for Pultrusion


FAQ:
Q: Are you a factory or trading company?
A: We are a professional fiberglass fabrics and mats manufacturer from 2008, doing kinds of fierglass composites.

Q:Where is your factory located? How can I visit there?
A: Our factory located in Tianning district, Changzhou city, Jiangsu province. About 1.5-2 hours from Shanghai(air port and train station), All our clients, from home or abroad, are warmly welcome to visit us!

Q: What is your annual turn over?
A: In 2017, yearly output more than 18,000 tons, and turnover more than 150,000,000 RMB.

Q: How can you guarantee your quality?
A: Quality is priority. Zhongjie people always attach great importance to quality con trolling from the very beginning to the very end
1. All raw materials we used are from very famous, quality ensured factory like Jushi, CTG, Shandong Fiberglass...
2. Skillful workers care every details in production, packing, transporting. To make sure costomers recived our best made.
3. Quality control department with experienced professers, engineers who from authroized FRP Universities, Reaseach institutes...etc;

Q: What is your lead time?
A: Usually in 7-10 days for productions and stock always about 3-5 days.
