Fiberglass Woven Roving Combo Mat

Get high-quality Fiberglass Woven Roving Combo Mat from our factory. Durable and versatile option for construction and composite manufacturing.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Production Line
  • Storage
  • FAQ
Overview

Basic Info.

Model NO.
JZ-WRM-300300, JZ-WRM-500300, JZ-WRM-600300
Weight of Woven Roving
300GSM, 400GSM, 500GSM, 600GSM, 800GSM
Weight of Chopped Strands
225GSM, 300GSM, 450GSM
Total Weight
600GSM,800GSM,900GSM,1050GSM,1100GSM,1250GSM
Width
1.27m and 2.54m
Roll Weight
50kgs, 100kgs
Transport Package
Carton with Pallet
Specification
300/300,500/300,600/300,600/450,800/300,800/450
Trademark
JIUZHONG
Origin
Jiangsu, China
HS Code
7019900000
Production Capacity
500ton/Month

Packaging & Delivery

Package Size
130.00cm * 30.00cm * 30.00cm
Package Gross Weight
52.000kg
Lead Time
5 days (1 - 5000 kg)
12 days (5001 - 10000 kg)
15 days (10001 - 20000 kg)
To be negotiated ( > 20000 kg)

Product Description

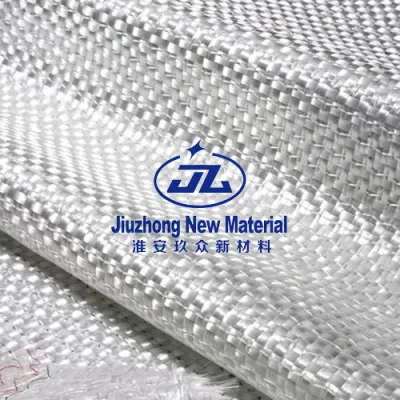

Fiberglass Woven Roving Combo Mat

Product Description


Fiberglass Woven Roving Combo Mat is a layer of woven roving stitched with chopped strand mat via polyester yarn, without chemical binder. It is compatibled with Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin, etc., can be used for Pultrusion, Hand Lay-up and RTM mold process, and widely applied to FRP boats, panels, automotive parts, cooling tower, swimming pool and structural sections, and so on.


PROPERTIES:
1.Warp and weft yarn arrayed flat, uniform tension
2.Fiber arrayed in high density, easily deformed, easy to operation
3.Good moldability, fast and completely wet out in resins



  • Easily handing and fast wet out with no binders

  • High strength in specific directions and high productivity.

  • Reduction of FRP product, save production costs.

  • Increased properties of laminated FRP in terms of tensile strength.

  • Smooth, shiny surface in finished molded parts.



Detailed Photos
Fiberglass Woven Roving Combo Mat
Fiberglass Woven Roving Combo Mat
Fiberglass Woven Roving Combo Mat
Fiberglass Woven Roving Combo Mat



Product Parameters
Item


Total Weight
(g/m2)
WR Density
(g/m2)
Chopped Glass Density
(g/m2)
Polyester Yarn
(g/m2)
EWR300/M300 610 300 300 10
EWR600/M300 910 600 300 10
EWR600/M450 1060 600 450 10
EWR800/M300 1110 800 300 10
EWR800/M450 1260 800 450 10
1808 885 600 275 10
1810 910 600 300 10
1815 1060 600 450 10
2408 1112 827 275 10
2410 1137 827 300 10
2415 1287 827 450 10

Production Line

Fiberglass Woven Roving Combo Mat
Fiberglass Woven Roving Combo Mat

Fiberglass Woven Roving Combo Mat
Fiberglass Woven Roving Combo Mat



Fiberglass Woven Roving Combo Mat
Application: FRP Tanks, Refrigerated truck body, Cured in place pipe(CIPP Liner), Polymer concrete box/Spice Box/Junction Box, Concreto Polimerico,Aerial Lift Arms ...

Storage

The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15ºC to 35ºC and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.

FAQ

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer:
Our factory is located in Huai An, Jiangsu, China. You can fly to Shanghai or Huai An airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer:Quality is priority.We always attach great importance to quality controlling from the very beginning to the very end. Our factory
has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within20-25 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by LC at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
