Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

Get durable Industrial Mesh Fabric Polyester Fiber Antistatic Fabric from our factory. High-quality, reliable and versatile for various applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Material
  • Features
  • Product Parameters
  • Packaging & Shipping
  • About us
Overview

Basic Info.

Model NO.
S31505
Advantage
High Wear Resistance
Transport Package
Wooden Case
Specification
make to order
Trademark
SUN HONG
Origin
China
HS Code
8439990000

Product Description

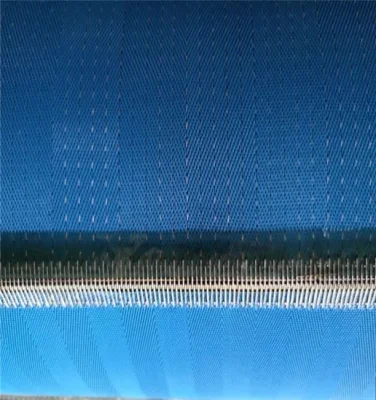

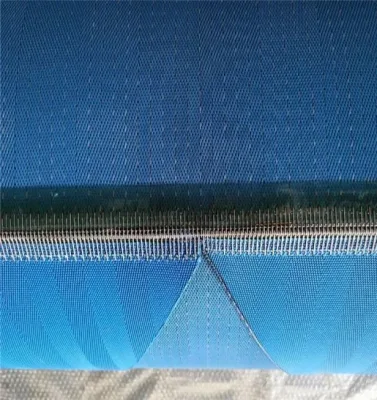

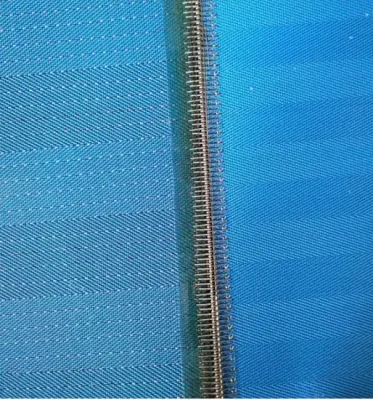

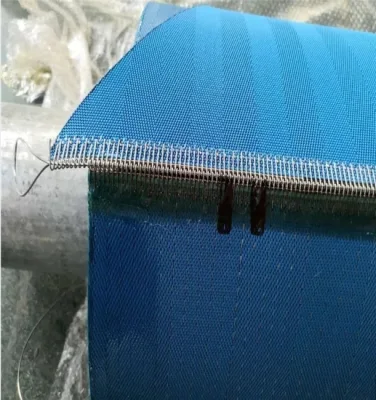

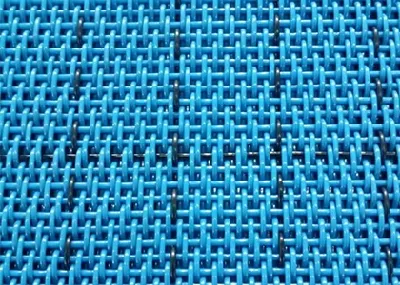

Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

Product Description

We all know that the equipment using polyester fabric will produce high friction electrostatic when it runs at a high speed. To dissipate this static electricity, conductive threads, normally bronze or stainless steel wires are woven through the polyester fabric. And this new fabric is generally called as anti-static filter fabric.
Our range of anti-static filter fabric is widely used in various aspects including pulping drying, chemical fiber industry, high density board, sludge dehydration, conveyor belt, environmental protection, vacuum filtration, rubber and chemical industry, etc.

Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

Material

1.Monofilament is the raw material for the production of net curtains, which is very important. Only high-quality monofilament can be made into high-quality good net.
2.We use the anti-hydrolysis monofilament of Zhejiang Quzhou Baste Mesh Co., Ltd., which has a good reputation in China.
3.The conductive wire of the radial wire is selected from the British Shakespeare monofilament, and the conductive wire of the weft wire is selected from the Korean Sakeland conductive wire.
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

Features

Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
1.High temperature resistance, not easy to corrosion, high stability, not easy to deformation under high temperature.
2. Different sizes: different sizes for different users, it is easy to suit all kinds of uses.
3.Strict quality control system: strict ICQ test and production process without wire breakage phenomenon.
4.Net curtain surface is clean and smooth, product forming perfect, pulp easy to peel off.

Product Parameters



Type

Filament Diameter mm Density
Root /cm
Tensile Strength N/cm Weight kg/m² Thickness mm Air permeability m³/m²h CFM 127Pa Conductive filam
(material)
Electric conductivity
Ω·cm
warp weft warp weft surface Joint
S31505 0.4 0.5 33 9 1600 900 0.8 1.3 2976 186 Copper wire 5*10³
S14804 0.65 0.8 14.8 7.2 2000 900 1.6 1.95 6800 430 Copper wire 5*10³
S14804-1 0.65 0.8 14.8 7.2 2000 900 1.5 1.95 6800 430 Carbon wire 5*10³
S4106-3 0.5 0.3 22.8 12.6 2200 900 1.5 1.8 8000 500 Copper wire 5*10³
0.7
S14708 0.64 0.7 15 8 2000 900 1.03 1.78 11200 700 Carbon wire 6*10³
S12708 0.46*0.68
(Flat)
0.7 14.1 7.3 2000 900 0.9 1.76 8000 500 Carbon wire 6*10³

Packaging & Shipping

SUN HONG tremendous strength and rich logistic operation experience are the guarantee to provide assured and satisfied service for you.

Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

About us

Who We Are
Founded in 2010, with 400 workers in-service, including the Special Product Development Team about 60workers . Focused in pulp and paper industry.Sun Hong has grown to become the trust-worthy supplier by consistently manufacturing high-quality products,providing considerate service and cost-effective pricing .We've been maintaining our commitment to serve you , your satisfaction is our pursuit.
Industrial Mesh Fabric Polyester Fiber Antistatic Fabric

Our Commitment
Maintaining close contact with paper plants from Southeast Asia,Central Europe and South America we have accumulated a wealth of experiences in paper making industry. We commit ourselves to providing the first class product and service for you! Whether it's a project or a bolt washer, each product has the particular ID under strict quality control procedures.

Industrial Mesh Fabric Polyester Fiber Antistatic Fabric
