Taper Connecting Rod Needle Aluminum Linear Guide

Taper Connecting Rod Needle Aluminum Linear Guide - High-quality industrial products. Made in our factory with precision engineering and durable materials.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • product list
  • Product features
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
32234
Load Direction
Thrust Bearing
Separated
Unseparated
Transport Package
Wooden Pallet
Specification
170*310*86mm
Trademark
JVZB
Origin
China
HS Code
8482102000
Production Capacity
50000

Product Description


Taper Connecting Rod Needle Aluminum Linear Guide
product list
Model Size Rated load Rated Speed Weight
ID OD Width CR COR Grease Oil
mm mm mm KN KN r/min r/min KG
32234 170 310 86 968 1640 1000 1300 28.600
32236 180 320 86 998 1720 900 1200 29.900
32238 190 340 92 1120 1900 850 1100 36.100
32240 200 360 98 1320 2180 800 1000 43.200
32244 220 400 108 1190 1930 830 1100 56.800
32248 240 440 120 1530 2480 740 980 76.400
32303 17 47 19 31.9 29.9 9400 13000 0.17
32304 20 52 21 42.8 46.2 7500 9500 0.23
32305 25 62 24 61.5 68.8 6300 8000 0.37
32306 30 72 27 81.5 96.5 5600 7000 0.56
32307 35 80 31 99 118 5000 6300 0.76
32308 40 90 33 115 148 4500 5600 1.04
32309 45 100 36 145 188 4000 5000 1.40
32310 50 110 42.5 178 235 3800 4800 1.89
32311 55 120 43 202 270 3400 4300 2.37
32312 60 130 46 228 302 3200 4000 2.90
32313 65 140 48 260 350 2800 3000 3.51
32314 70 150 51 257 315 2700 3600 4.11
32315 75 160 55 348 482 2400 3200 5.37
32316 80 170 58 388 542 2200 3000 6.38
32317 85 180 60 422 592 2000 2800 7.31
32318 90 190 64 478 682 1900 2600 8.81
Product features

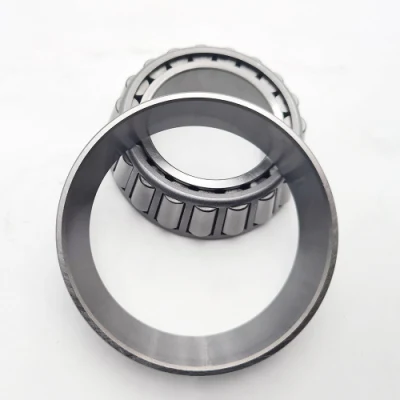

The inner and outer rings of tapered roller bearings have tapered raceways, and tapered rollers are installed between the raceways. If the tapered surface is extended, it will eventually converge at a point on the axis of the bearing. Tapered roller bearings are mainly used to bear radial and axial combined loads, mainly radial loads. The axial load carrying capacity of the bearing is determined by the contact angle, the larger the contact angle, the greater the axial load carrying capacity. Tapered roller bearings are separable bearings, the inner ring with rollers and cage constitutes the inner assembly, which can be installed separately from the outer ring.
     This kind of bearing can limit the axial displacement of one side of the shaft or housing, and does not allow the shaft to tilt relative to the housing hole. Under the action of radial load, additional axial force will be generated. Therefore, generally in the two supports of the bearing, the outer ring and inner ring of the bearing should be installed opposite to each end face.
     Main applications of this type of bearings: front wheels, rear wheels, transmissions, differentials, pinion shafts, machine tool spindles, construction machinery, large-scale agricultural machinery, railway vehicle gear reduction devices, rolling mill roll neck small reduction devices.

Taper Connecting Rod Needle Aluminum Linear GuideTaper Connecting Rod Needle Aluminum Linear Guide
Company Profile

Shandong Jieyi Bearing Co., Ltd. is a more than 20-year history of bearing trading company. We are located in the biggest bearing town in China--Yiandian Town.

Our products include: Deep Groove Ball Bearings, Self-aligning Ball Bearings, Spherical Bearings, Tapered Roller Bearings, Cylindrical Roller Bearings, Needle Roller Bearings, Self-aligning Roller Bearings, Angular Contact Ball Bearings, Thrust Ball Bearings and Trust Roller Bearings and Special Bearings.

Jieyi Bearing also provides OEM service, such as bearing quality, noise level, grease brand, packing method, etc. We have enough OEM experience, and have a complete OEM manual for customer reference.

Products have been selling well in the American, French, Spanish, Austria, Italian, the U. A. E. Saudi, Pakistan, India, and Brizal markets.

With over 20 years′ experience in bearings market, Jieyi Bearing have built up good relationship with all of our customers and quality factory. We always get satisfactory feedback from our customers because of the high quality products and good OEM service. We always supply the quality, stable, economical bearings and proper technical services.

Jieyi Bearing has advanced quality testing and inspecting equipment, to guarantee product quality meets customers' demand. Annually our company′s export over 10 million dollars.

To service dear customers at the fastest speed, we built a great Warehouse to stock bearings, so as to ship your required bearings fast. Inside of the bearing warehouse, there is all sourcing of bearing stock, with all kinds of bearings, over 10000 types.

Welcome to people of various enterprises with advance!


Taper Connecting Rod Needle Aluminum Linear Guide

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory and trading company.
Q: How long is your delivery time?
A: Within 7 days with stock.  15-30 days for 1 container to OEM brand following your request
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, freight cost need to be charged.
Q: What is your payment term?
A: We accept 30% TT advance ,70% balance against the bill loading copy. Also 100% L/C is ok.
