Uniaxial Biaxial Polyester Geogrid for Retaining Walls

Uniaxial Biaxial Polyester Geogrid for Retaining Walls - High quality geogrids for strong and durable retaining walls. Factory direct pricing.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Specifications
  • Application
Overview

Basic Info.

Model NO.
10kn to 1500kn
Classification
Polyester Geogrid
Material
Polyester
Raw Material
Polyester Yarns
Tensile Strength
20-1000kn
Mesh Size
12-50mm
Coating
PVC
Width
1-6m
Length
50-100m
CE
CE /ISO9001
Transport Package
PE Bags+Colored Tapes
Specification
10KN -1500kn
Trademark
Lianyi Jiuzhou
Origin
China
HS Code
3926909090
Production Capacity
1000000 Sqm Per Day

Product Description

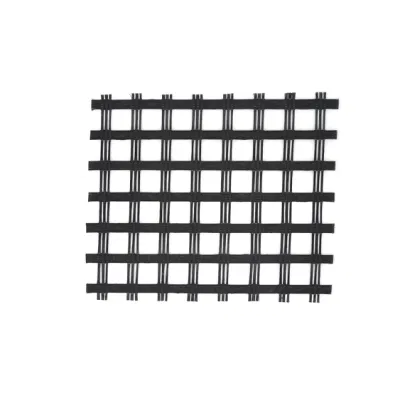

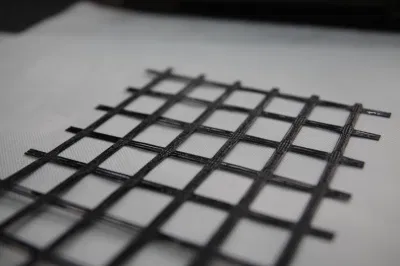

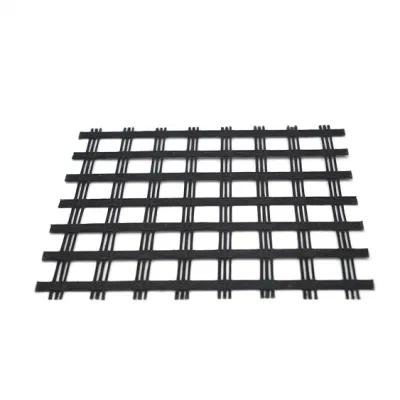

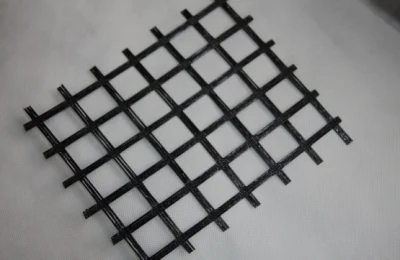

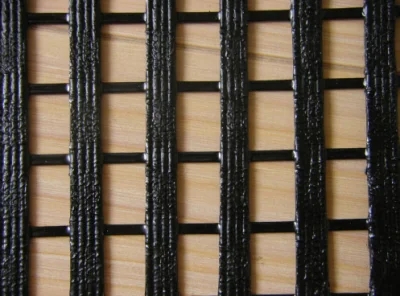

                                        Polyester Geogrid With PVC coating PET Biaxial/ Uniaxial Geogrid

Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls



Product Description

PVC Coated Polyester Geogrid are made from a woven matrix of high tenacity polyester fibres that are coated with a protective polymer coating. And strengths can be very high, with design values of up to possible 1000 kN/m. The strength of a geogrid allows positive reinforcement of embankments, steep slopes, retaining walls and other vertical soil structures. Geogrids interlock with the soil providing long term reinforcement and are the most cost-effective method of creating additional horizontal space. Polyester geogrids have excellent long term creep performance.

Our Advantages

1. Consistent long-term physical properties
2.Ability to reinforce any soil type
3.Low creep under constant load
4. High modulus
5.Easy to install
6.High pull out resistance
7.Excellent survivability to construction stresses
8. Excellent soil-to-soil and aggregate-to-aggregate contact through large grid openings.


Specifications


Polyester Biaxial Geogrid
Property Test Method PET
30-30
PET
50-50
PET
80-80
PET
100-100
PET
120-120
PET
150-150
PET
200-200
Ulimate tensile strength(kn/m) MD EN ISO 10319 30 50 80 100 120 150 200
CD 30 50 80 100 120 150 200
Elongation at max load (%) MD 13
CD 13
Mesh Size (mm) 12-50
Roll width(m) 1-6
Roll length(m) 50-200
Polyester Uniaxial Geogrid
Property Test Method PET
60-30
PET
80-30
PET
100-30
PET
120-30
PET
150-30
PET
180-30
PET
200-30
Ulimate tensile strength(kn/m) MD EN ISO 10319 60 80 100 120 150 180 200
CD 30 30 30 30 30 30 30
Elongation at max load (%) MD 13
CD 13
Mesh Size (mm) 12-50
Roll width(m) 1-6
Roll length(m) 50-200
Application


1.Retaining wall reinforcement
2.Slope reinforcement
3.Base and other reinforcement uses

Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls

Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls
Uniaxial Biaxial Polyester Geogrid for Retaining Walls





Company Information

Feicheng Lianyi Engineering Plastics Co., Ltd is the currently one of the biggest geosynthetics manufacturer in China . It is located in Feicheng city,Shandong province of China. We are specilized in series of Geogrids, Geotextiles,Geomembranes,Geocell etc,and have the absolutely advantage for the quality in this field of China.

Our Main products include PP Biaxial Geogrid,Fiberglass Geogrid,Self adhesive Fiberglass Geogrid,Polyester Geogrid,HDPE Uniaxial Geogrid,Welded Geogrid,Composite Fiberglass Geogrid & Polyester geogrid with Spunbond nonwoven geotextile or Needlepunched Nonwoven geotextile by glue,Fiberglass Geogrid & Polyester Geogrid knitted Spunbond Nonwoven geotextile or Needlepunched Nonwoven geotextile impregnated by bitumen,Combigrid (PP Biaxial Geogrid with Nonwoven Geotextile by welding),Nonwoven Geotextile,HDPE Geocell,PP Woven Geotextile,Mining Geogrid etc .

We have always adhered to the philosophy of prioritizing quality, strict management, high-quality service, following customer requirements, consistently exploring and advancing, serving customers well, in order to seek long-term cooperation

Any further demands for our materials if you have,you can contact with our Marketing Manger Mr Allen



Uniaxial Biaxial Polyester Geogrid for Retaining Walls

Our Certificates

Uniaxial Biaxial Polyester Geogrid for Retaining Walls

Exhibitions
Uniaxial Biaxial Polyester Geogrid for Retaining Walls


FAQ
Q1:What is your delivery time?
A1:Generally it is 5-10 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer and we have BV certification. So we have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C etc
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freight.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
