Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin

Get high-quality waterproofing fiberglass products for construction and mannequin manufacturing from our factory. Chopped strand mat and glass fiber cloth with polyester veil available.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Application
  • Company Profile
  • Exhibition photos
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
600
Felt Type
Facing (Surfacing) Mat/Continuous Filament Mat
Roll Weight
10-200kgs
Softness
Soft or Customized
Application
FRP, Boat, Roof, Cooling Tower, Construction, etc.
Width
0.2m - 3.4m
Color
White
Performance
Compatible with Multiple Resin Syuste
Transport Package
PE Bag, Carton and Pallet
Specification
80-900gsm
Trademark
RULE
Origin
Changzhou, China
HS Code
7019190000
Production Capacity
20000 Ton / Year

Product Description

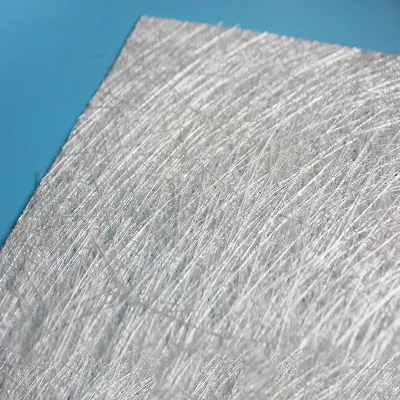

Fiberglass Chopped Strand Mat
Chopped strand mat is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, automotive, cooling towers, bathroom accessories, anti-corrosion pipes etc, suitable for hand lay up, filament winding, press molding forming processes.

Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin
Product Description
 Features and usage:
Chopped strand mat is made of fiberglass chopped strands bonded with powder or emulsion binder uniformly. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, automotive, cooling towers, bathroom accessories, anti-corrosion pipes etc, suitable for hand lay up, filament winding, press molding forming processes.
Code Weight (g/m2) Binder type L.O.I Moisture   content T. Strength (N)
Vertical Horizontal
RUL100 100 Powder/Emulsion 4.0-12.0 ≤0.2 ≥80 ≥80
RUL120 120 Powder/Emulsion 4.0-12.0 ≤0.2 ≥80 ≥80
RUL150 150 Powder/Emulsion 4.0-12.0 ≤0.2 ≥100 ≥100
RUL200 200 Powder/Emulsion 4.0-12.0 ≤0.2 ≥100 ≥100
RUL225 225 Powder/Emulsion 2.0-8.0 ≤0.2 ≥100 ≥100
RUL300 300 Powder/Emulsion 2.0-8.0 ≤0.2 ≥120 ≥120
RUL380 380 Powder/Emulsion 2.0-8.0 ≤0.2 ≥120 ≥120
RUL450 450 Powder/Emulsion 2.0-8.0 ≤0.2 ≥150 ≥150
RUL600 600 Powder/Emulsion 2.0-8.0 ≤0.2 ≥150 ≥150

Specifications Weight g/m* Breaking Strength N/150mm Package Weight kg Binder Content %
E MC250 -1040
C MC250 -3200
250 30 30
60
2-6
E MC300 -1040
C MC300 -3200
300 40 30
60
2-6
E MC450 -1040
C MC450 -3200
450 60 30
60
2-6
E MC600 -1040
C MC600 -3200
600 80 30
60
2-6
 E-Glass Multi End Roving For Making Chopped Strand Mat

Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin

Product Parameters

Brief Introduction

E-glass multi end roving for making chopped strand mat is specially designed multi end roving used for powder and emulsion chopped strand mat, it has suitable rigidity,good chopped and dispersion performance, good static resistance , good resin impregnation etc. good compatibility with the unsaturated polyester resin, it can also be used by cutting as the chopped strands for making stitched bonded mats.

Model No. Rated Size Tex Deviation % Moisture Content % Sizing Content
%
Dispersion Rate % Rigidity mm
ER2400-T622 2400 ±6 W0. 2 0. 5±0. 2   110±20
It is a non-woven E or Glassfiber met product manufactured by spreading continous filament roving of 50mm in length randomly and uniformly in combination with polyester binder in powder from (or other bihder in emulsion form).
It is characterized by good combination of resin, easy operation .good wet strength retension .good laminate transparency and low cost. It is suitable for the applications by hand lay-up FRP mouldings , such as: various sheets and panels, boat hulls, bath tubs, cooling towers, corrosion resistant, vehicles etc.
1)Roll width: Standard width in 1040mm, 1270mm, and other sizes depends on customer's real needs, available in 200mm to 3200mm.
2)Packing: Fiberglass chopped strand mat is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container.
3)Storage: The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15ºC to 35ºC and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.


Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin
Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin


Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin



Application
Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin



Company Profile

Founded in 2002, Changzhou Rule Composite Material Co., Ltd, is a enterprise engaged in in manufacturing high-performance unsaturated polyester resin, gel coat, glass fiber reinforced composite materials and other related products, also professional in research, development as well as technical consulting and services of composite materials.
Rule Composite Material covers an area of 50, 000 square meters, with a modern office building, an independent R& D center and a high-standard production workshop, equipped with the leading DCS automatic control production device. We also have a strong and advanced quality control department and technical support laboratory.
RULE focuses on the production of excellent-quality and creative-design resin products, so it is trustworthy. Our sweat and wisdom witness the footprints of yesterday's struggle, passion and dream fulfill today's victory. Forging ahead to make innovation in market economy, pursuing value of "innovation, creativity, sharing" in practice, it harvests a stream of praises and honors.

Our Advantages
Why we choose Changzhou Rule Composite Material Co., Ltd?
What is resin?


Resin usually refers to products inclined to softening or melting after receiving heat. When softening, it shows a trend toward flowing under the influence of external forces. Under normal temperature, it is in solid, semi-solid state, and sometimes liquid organic polymer. Broadly speaking, any macromolecule compound that can be used as a raw material for plastic processing can be called resin.

What can resins do for you?
Resin products are widely used in sectors like railways, automobiles, wind power, shipbuilding, cooling towers, pipelines, coatings, electrical appliances, artificial stone, handicrafts, lighting tiles, sanitary ware, anti-corrosion engineering and so on. Rule has been granted certification of ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System, and some products have won recognition of China Classification Society(CCS) and Food-Level Licenses of the Provincial Department of Health.

We are the professional resin solution provider.
With decades of experience in the R& D of resins, we can fully understand customers' needs and aspirations in the cooperation process and have presented countless solutions. Over the years, we work hard to optimize our products and make them attractive to end users.

Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin
Exhibition photos

Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin



Packaging & Shipping

This product is packed in pallets, every single roll is in a shrinkage polybag, 3-4 layers for each carton, or 48-64 rolls/each carton.
The product should be stored in the dry and open environment to prevent wetting out and also should be packed completely.
The best storage temperature is 5-35°C, moisture degree is 35-65%, this product is better to be used up in 12 months.
Maximum two layers of pallets is allowed vertically stacked if the storage space limited.

Waterproofing for Construction Fiberglass Chopped Strand Mat Glass Fiber Cloth with Polyester Veil for Mannequin
